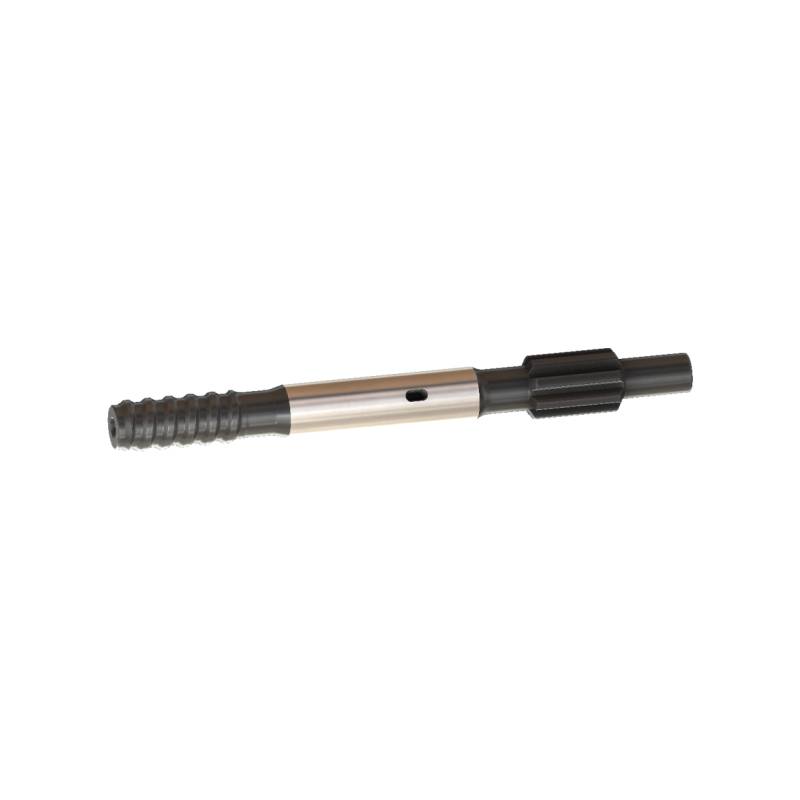

R32/T38/T45 575mm Drill Shank adapter for Atlas Copco COP1036/1038/1238 NO. 90515888/90515981/90515996

  • 1
  • 2

Brand Name : HZJX

Model Number : COP1036-R32-575/COP1038-T38-575/COP1238-T45-575

Place of Origin : China

MOQ : 1PCS

Price : Price negotiations

Payment Terms : T/T

Supply Ability : 1+PCS+20 workday

Delivery Time : 20 workday

Packaging Details : wooden box package

Product name : Drill Shank adapter

Applicable Industries : Manufacturing Plant, Construction works , Energy & Mining, quarrying

Type : Drill Shank

Machine Type : Drilling Tool

Material : Carbon Steel

Processing Type : Forging

Use : Ore Mining

Contact Now

R32/T38/T45 575mm Drill Shank adapter for Atlas Copco COP1036/1038/1238 NO. 90515888/90515981/90515996

Product Application of Drill shank adapter

HZJX main producing mines, tunnels, tunnels, quarrying and related industries drill can be specially designed and manufactured according to customer requirements.

If you do need, all the connectors can use external or internal thread ether production.
Male pin connectors are generally more suited to the presence of high bending stress drift, tunnels and extending applications. When the length of the borehole is limited space and time, the total feed rate is important, for example, a threaded joint with a ground anchor.
Adapter is a processing task rotational torque, feed force and impact energy, the flushing medium is transferred to the drill pipe and drill bit.
Shank adapter designed to withstand modern high impact drilling machine, in particular made of selected materials, the material is hardened by combustion, and having a sufficient elasticity to ensure that the shank.

Product data of Drill Shank Adapter

SPECIFICATION FOR SHANK ADAPTER COP1036/1038/1238
Thread Length(mm) Dia(mm) Weight(kg) Part NO.
Atlas Copco Boartlongyear
R32 575 38 4.6 90515888 7803-3590-03
T38 575 38 4.9 90515981 7804-3590-03 450423
T45 575 45 5.8 90515996 7304-3590-03

R32/T38/T45 575mm Drill Shank adapter for Atlas Copco COP1036/1038/1238 NO. 90515888/90515981/90515996
