Single arm excavation drilling rig
Product introduction of drilling rig

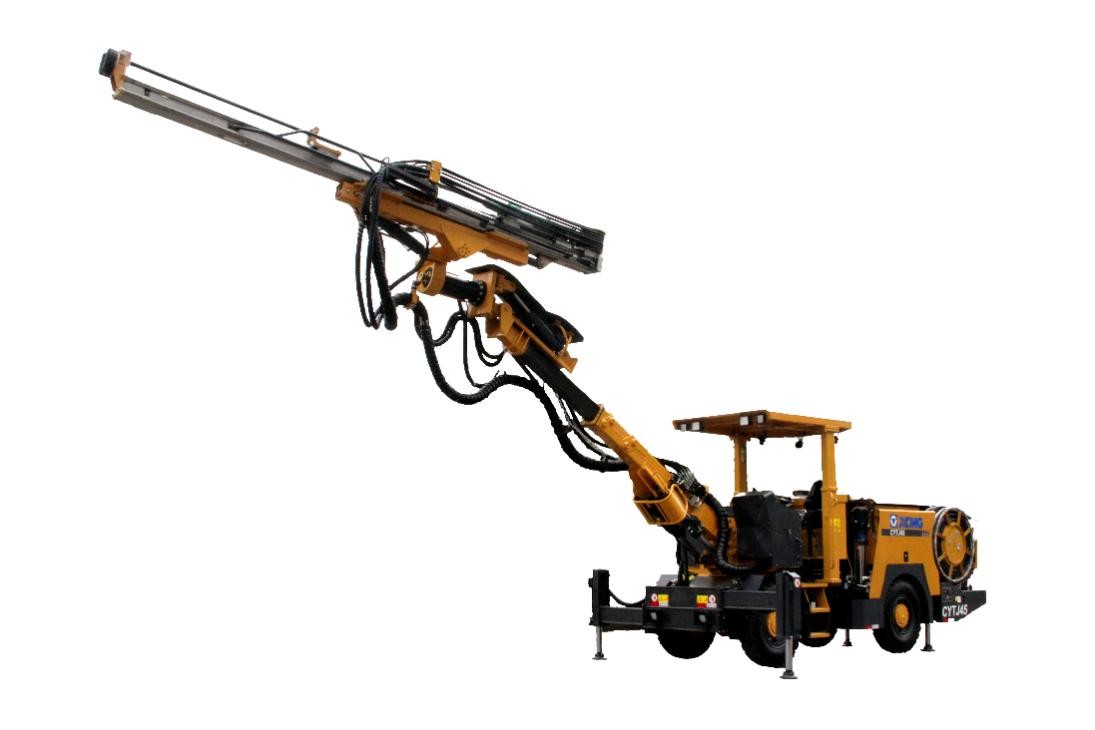

CYTJ45 is mainly suitable for the excavation construction of various underground roadways and culverts such as metal mines, hydropower, etc. It is also suitable for drilling blasting holes and drilling bolt holes in narrow ore veins and tailings mining, small roadways, etc. The equipment adopts hydraulic rock drilling system with advanced system, fast rock drilling speed and high work efficiency; the whole machine is compact in structure, flexible in maneuverability, convenient for operation in narrow spaces, and the maximum operating coverage area: 35㎡.
Main technical highlights of the product
Rock drill
The imported rock drill has the characteristics of super anti-bending ability, high drilling speed and low drilling tool loss, which effectively improves the adaptability of tunnel edge drilling.
thruster
Light aluminum alloy beam, high-efficiency bending, torsion and fatigue resistance, long service life. The unique single-layer arrangement of the hose reel, combined with the reliable pipe clamp structure, has good hose tensioning performance, effectively prolonging the life of the hose and reducing the maintenance intensity;
Drill boom
The drill arm is kept in parallel in all directions, and the positioning is fast and accurate; the square structure has high strength and good shock absorption performance;
Drilling system
It has the functions of anti-jamming, anti-running and automatic retraction, which can effectively improve the drilling efficiency and reduce the loss of drilling tools;
Hydraulic system
The auxiliary action of the outrigger and ceiling light adopts the electronic control design, the pipeline is simplified, and the maintenance is easy;
Electrical System
The electrical components of international famous brands such as Schneider and Siemens are selected, which have high reliability and long service life; they are equipped with protection and alarm functions such as ground fault protection, phase sequence protection, motor overload protection and engine fault alarm.
Product data of drilling rig
| Sequence Number | Configuration | PCS |
| 1 | Engine | 1 |
| 2 | Front axle | 1 |
| 3 | Rear axle | 1 |
| 4 | Hydraulic rock drill | 1 |
| 5 | Three-phase asynchronous motor | 1 |
| 6 | Speed changing box | 1 |
| 7 | Water pump | 1 |
| 8 | Impact pump | 1 |
| 9 | Positioning pump | 1 |
| 10 | Rotary pump | 1 |
| 11 | Double gear pump | 1 |
| 12 | Cable reel | 1 |
